PVC Banner Welding Machine TOP2000B

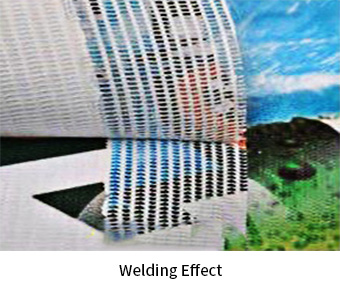

The coated banner welding machine adopts advanced PID control technology to automatically adjust the power to make the temperature more constant and fluctuate with in ±1 degree. This function can make the welding effect stronger. It can also avoid leakage. This machine is more suitable for rapid welding of large roofs.
Application area: Signs & Banners ,Mesh banner, Flex banner,UV front lit and back lit, Bill boards,etc.
Parameters
| Model | TOP2000B |
| Rated Voltage | 230V |
| Frequency | 50-60HZ |
| Power | 1800W |
| Temperature | 20-570℃ |
| Speed | 0.5-10m/min |
| Welding Width | 2-4cm |
| Net Weight | 20kg |
| Gross Weight | 23kg |
| Dimensions | 53*46.7*40cm |
Appliaction

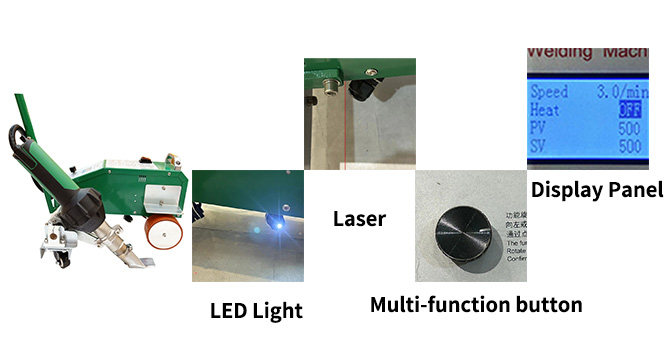

Multi-function button; Display panel; LED light; Laser
1.Multi-function button control,easy and intelligent operation.
2.Slow start function,perfect result in welding start.
3.Advanced digital constant temperature control system,temperature fluctuation in +-1 degree.
4.Laser,LED light,landing gear and handrail,accurate and convenient work.

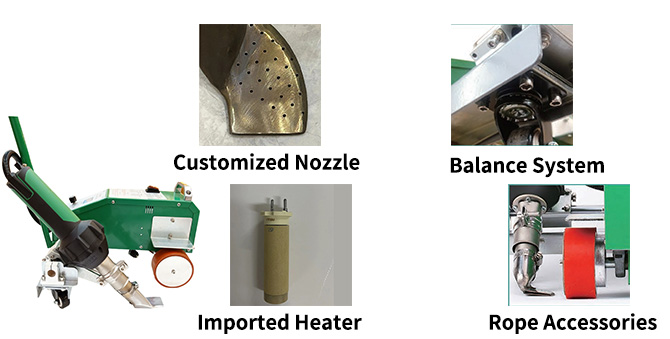

Imported Heater Resistance; Customized nozzle; Balance System; Rope Accessories
1.Imported heating element,longer service life.
2.Customized nozzle ,satisfy your different demand.
3.Dormancy function,protect the heater and save electric power.
4.Automatic balance device, keep constant welding on uneven floor.

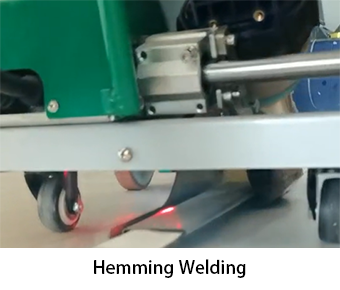

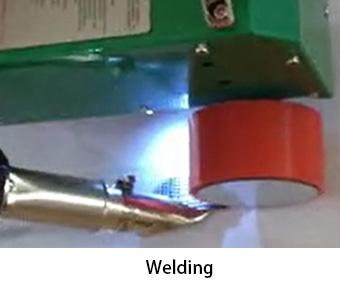

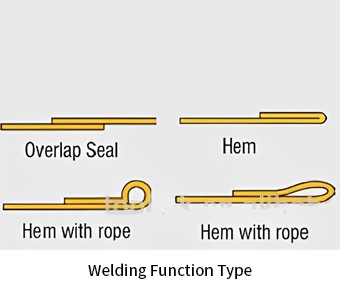

PVC banner welder machine,used for welding all kinds of banners. It can make overlap welding,edge hemming, hemming with rope/pocket, seamless welding,etc.
Application area: Signs & Banners ,Mesh banner, Flex banner,UV front lit and back lit, Bill boards,etc.
